Purging Paper / Water Soluble Paper / Dam Paper
Purging Paper or Water Soluble Paper is made of Sodium Carboxy Methyl Cellulose and wooden pulp. It dissolves rapidly and completely in most liquids including water. After welding is complete, purge dams can be effortlessly dissolved and flushed out of the system with water when hydro-testing; leaving no residue in the pipeline.

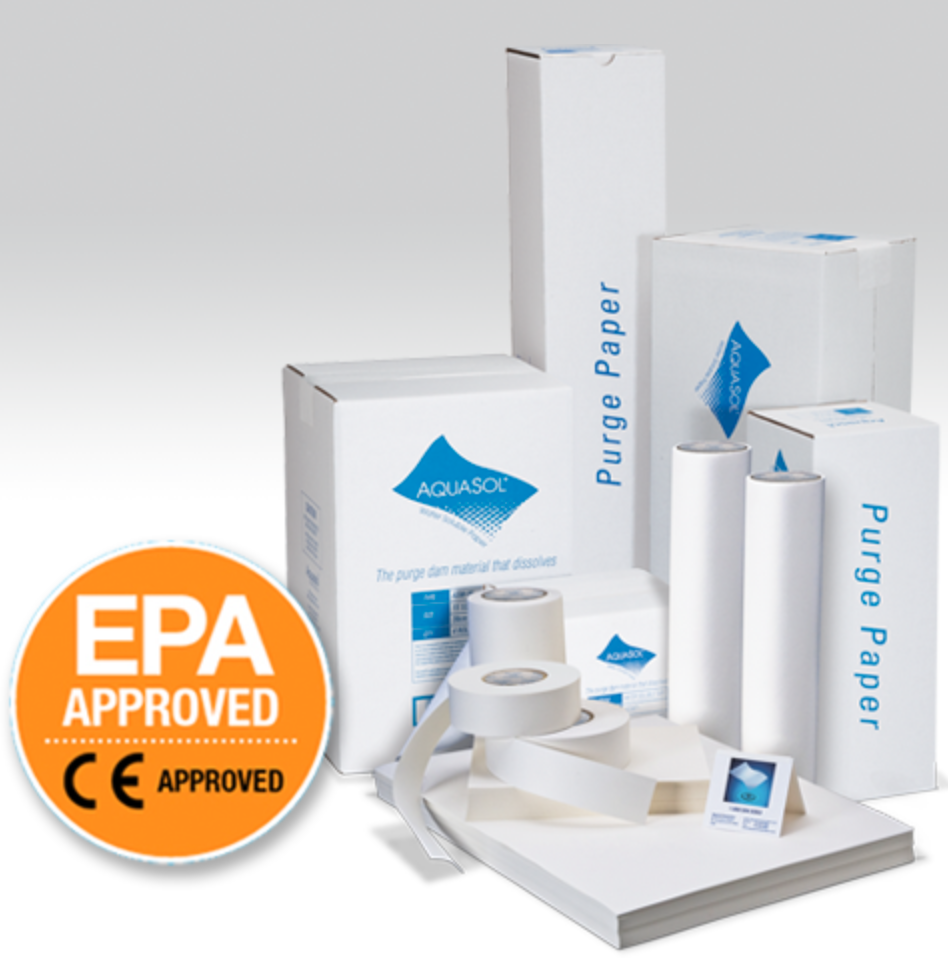

Water Soluble Paper or Purging Paper is available in a wide range of grades and sizes. It permits the construction of purge dams for literally any pipe diameter. The product is available in a variety of formats including sheets, rolls, and pressure-sensitive tapes. Custom sizes and lengths are available as well. It is extremely easy to store, environmentally friendly and nontoxic.
Purging paper or dam materials are strong enough to dam argon or helium and still maintain an oxygen free purge.
- Best, most economical purge dam material.
- Completely dissolves in water or steam.
- Simple and easy to use – right out of the box.
- Saves time and money.
- Effortless removal reduces labor expenses.
- Non-toxic, biodegradable, and eco-friendly.
Benefits:-
Cost Effective
Conventional purge dams such as inflatable rubber bladders, rubber gaskets, or cardboard discs traditionally must be placed far from the weld zone. Remote placement of the purge dams may require large amounts of purge gas to be introduced to fully displace the oxygen in the weld zone, making the use of the conventional purge dams cost-prohibitive and cumbersome. Our Water Soluble Paper and Tape can be placed in close proximity to the weld zone, thereby using less inert gas.
Ease of Removal
Our purge dams can be effortlessly dissolved and flushed out of the system with water or steam; leaving no residue in the pipeline.
Time-Saving
Because the dam is easy to remove, time is saved searching for inflatable bladders, especially in inaccessible pipe areas.
Our Water Soluble Paper and Tape dissolves in most aqueous solutions or steam.
Applications
Shree Kailaji Alloys Pvt. Ltd. Purging Paper is perfect for a wide range of industrial applications, ensuring clean, oxygen-free welds and reliable performance.
Preheat and post-heat temperature monitoring during welding, annealing, and stress relieving
Construction and repair of pipelines in oil, gas, and chemical industries
Purge dams for stainless steel, aluminium, and other metal welding
Measuring operating temperatures in transformers, motors, molds, electronic components, and hydraulic systems
Product Features & Specifications
Material: Sodium Carboxy Methyl Cellulose + wooden pulp
Sizes & Formats: Sheets, rolls, and pressure-sensitive tapes (custom sizes available)
Solubility: Dissolves completely in water or steam
Temperature Resistance: Suitable for standard welding temperature ranges
Packing: Convenient packaging for easy handling and storage
Shelf Life: 24 months from the date of manufacturing
Safety: Lead, sulfur, and chloride-free
How to Use Purging Paper
Insert the paper or tape into the pipe or around the weld zone to create a purge dam
Complete the welding process while ensuring an oxygen-free environment
Dissolve the Purging Paper with water or steam; no residue is left behind
FAQ
Purging Paper is used to create purge dams during welding, preventing oxygen contamination and ensuring high-quality welds.
Yes, it dissolves completely in water and most steam applications, leaving no residue.
Shree Kailaji Alloys Pvt Ltd offers sheets, rolls, and tapes in standard and custom sizes to suit all pipe diameters.
Yes, it is lead, sulfur, and chloride-free, making it non-toxic and environmentally friendly.
It allows precise placement close to weld zones, reducing the volume of inert gas needed, saving both material and money.
Yes, it is suitable for oil & gas, chemical, food & beverage, pharmaceutical, and metal fabrication industries.
Request a Quote
Shree Kailaji Alloys Pvt. Ltd. is your trusted Purging Paper supplier in India.
Contact us for bulk orders or custom sizes to meet your welding and fabrication needs.
Ensure high-quality, defect-free welds with our reliable Water Soluble Paper solutions.
